Normal Close 1/2" Port Portable Solenoid Valve 5v Dc CE

Product Categories

Shenzhen Wofly Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : AFK

Model Number : 2W-160-10B

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

Power : Solenoid

Port size : 1/2"

Media : Water,air

Standard or nonstandard : Standard

Type : Normal close

Voltage : 110V,AC220V,24V. AC24V

Contact Now

Pipe size	3/8	1/2”	3/4”	1”	1 1/4“	1 1/2”	2”
Orifce size	16mm	16mm	20mm	25mm	32mm	40mm	50mm
CV valve	4.8	4.8	7.6	12	24	29	48
fuild	Air, water, ol, the neutral gas,liquid
Service voltage	AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10%
Operating	Pilot operating	Type	Normally closed
Body Material	stainless teel 304	viscosity	(Below)20CST
Working pressure	Water, air;0-10kgf/m2 ;oil:0-7kgf/m2
Material of seal	Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use fluororubber

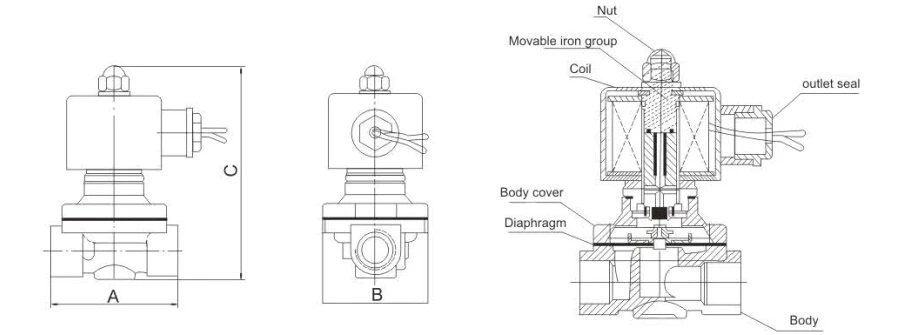

Product Dimension

Normal Close 1/2" Port Portable Solenoid Valve 5v Dc CE

Normal Close 1/2" Port Portable Solenoid Valve 5v Dc CE
