Water Media AC24V Sprinkler Solenoid Valve 3/4" Nylon Plastic

Brand Name : AFK

Model Number : 076D

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

Material : Plastic

Port size : 3/4",1"

Structure : Shutoff

Temperature of media : Medium Temperature

Media : Water

Voltage : 110V,24V. AC24V

Contact Now

it's currently one of the most widely used solenoid valve in garden irrigation
Applied in large area of lawn, Gym, agriculture, industrial dedusting and water treatment equipment

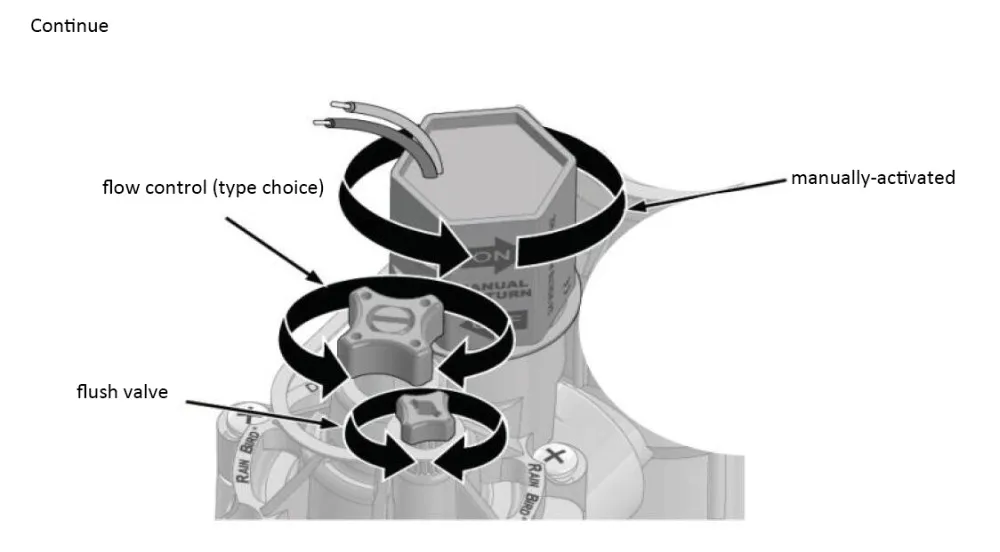

With Flow Control function.

TECHNICAL PARAMETERS
material		nylon plastic body, NBR seal
Fluid		water
Fluid temperature		≤43°C

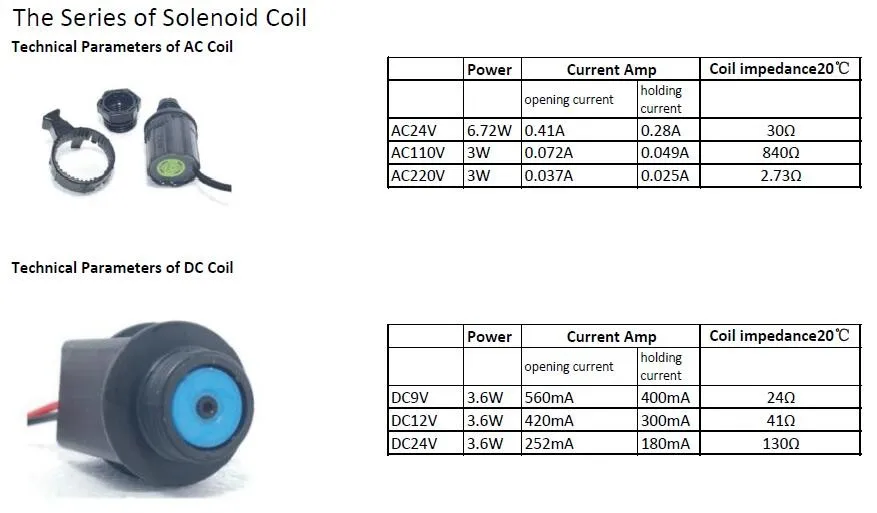

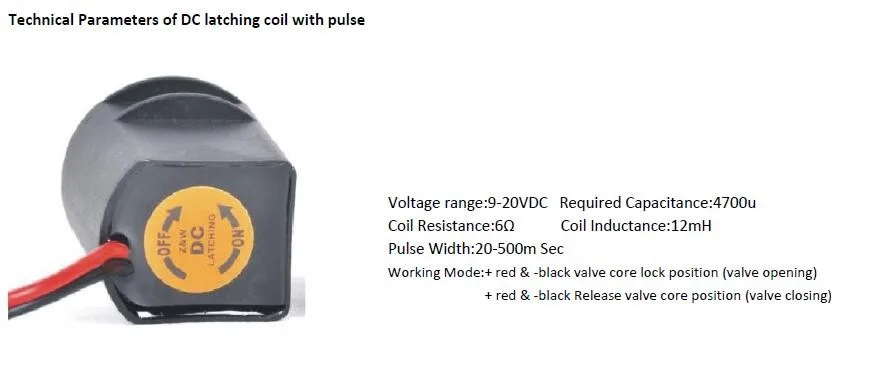

Service voltage		6-20VDC(latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
Connection		G(BSP) female thread is regular, special order for NPT(3/4" and 1")
Size		076D: 3/4", 20mm (BSP or NPT female) 101D:1", 25mm (BSP or NPT female )
Working pressure		3/4" and 1": 0.2-10bar
Flow rate		3/4":0.24 to 4.5 m3/h 1": 0.24 to 9.0 m3/h
Operation mode		valve element lock position,valve open, release position, valve close.

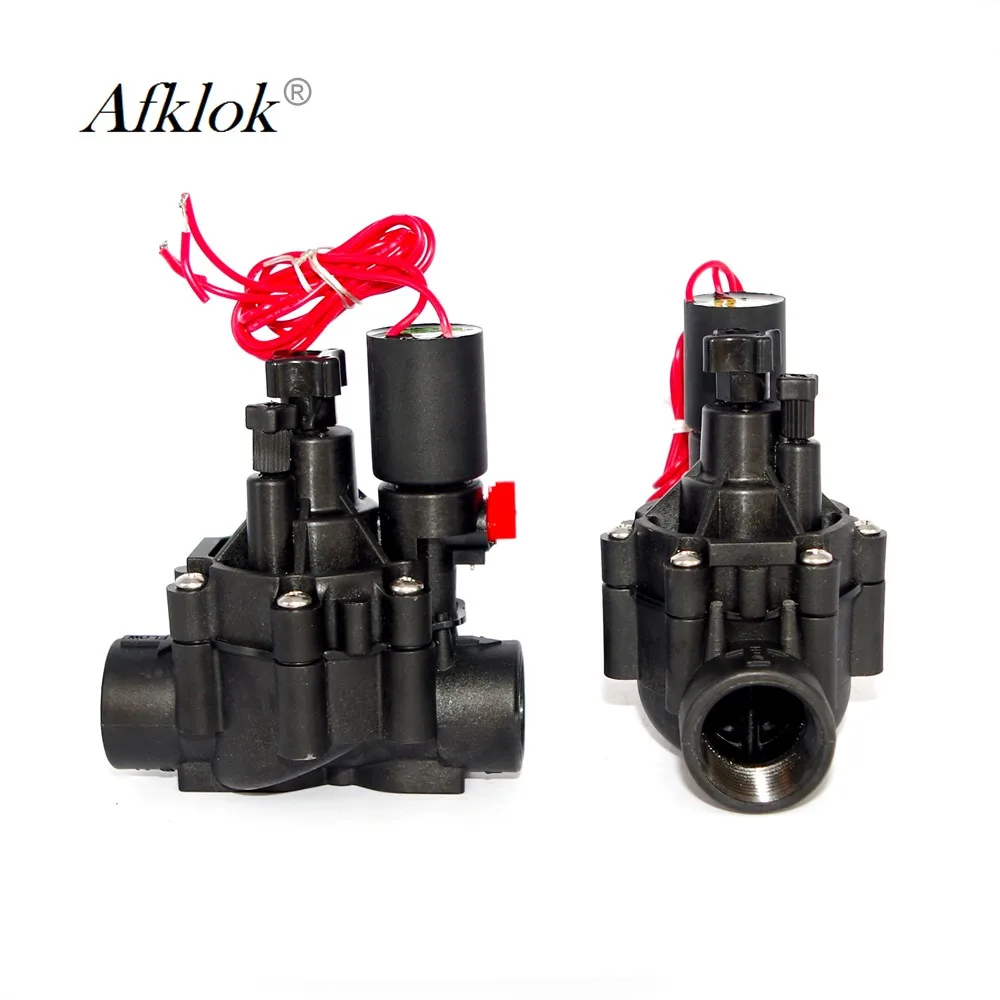

Detailed Images

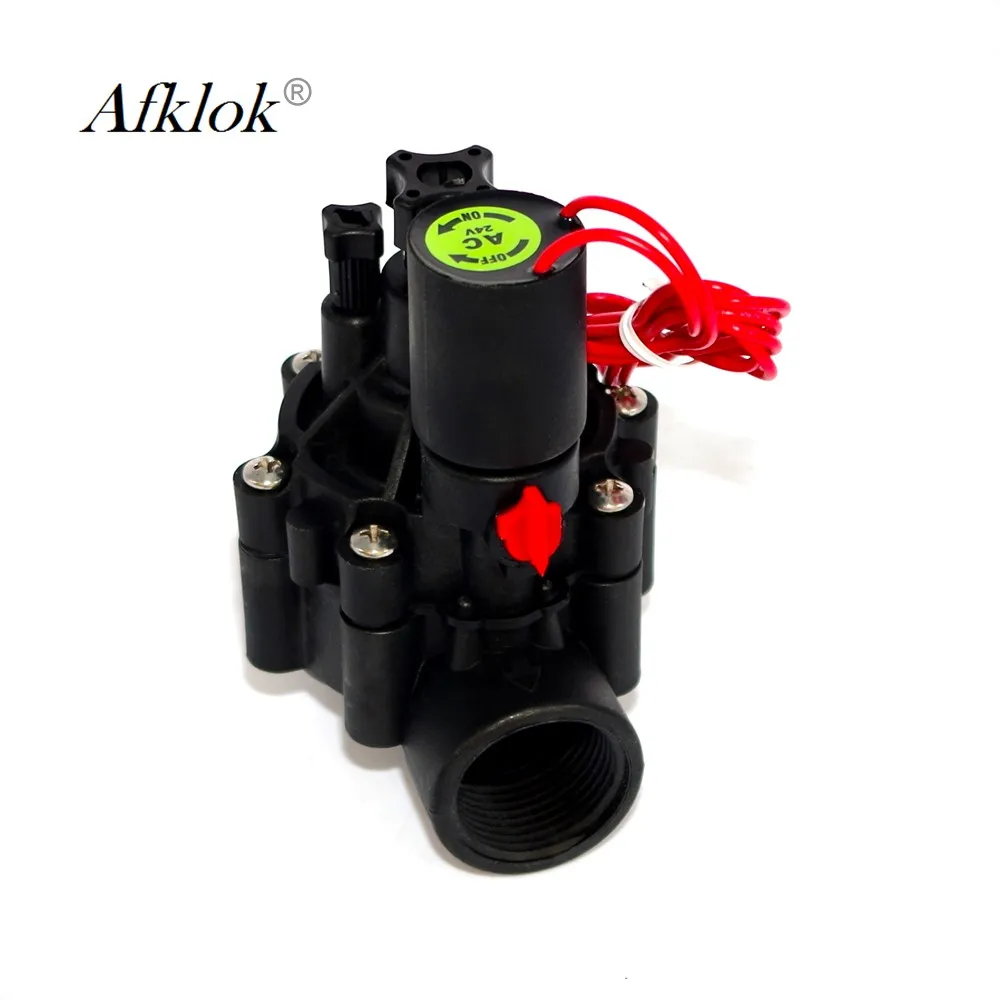

Water Media AC24V Sprinkler Solenoid Valve 3/4" Nylon Plastic

075D 100D solenoid valve

1. Pilot operating construction, valve body in nylon material
2. double filter prevent Blocking electromagnetic iron core
3.Totally Closed electromagnetic coil, waterproof
4.having slow closed function, preveting water hammer, damaging system

200P solenoid valve

1.Straight valve and Angle valves to be in harmony an organic whole

2.Dimesion: 110*80*120mm (L*W*H)

112X 82 X120mm with flange (L*W*H)

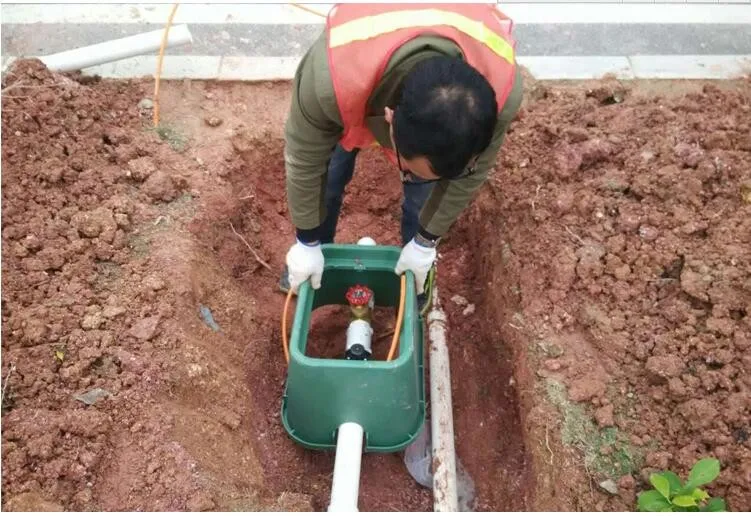

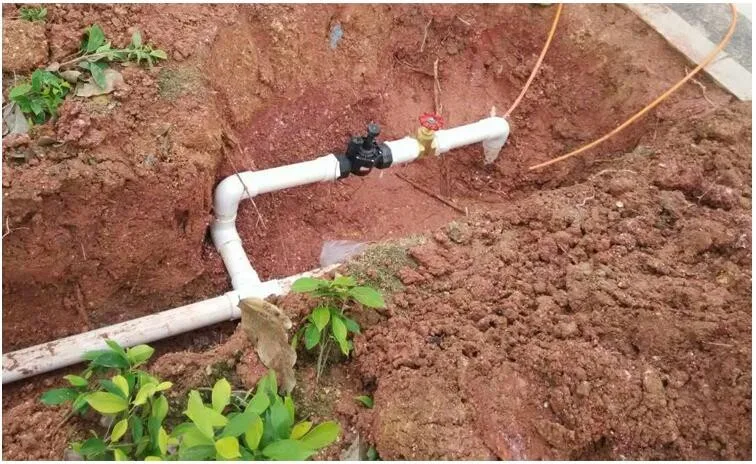

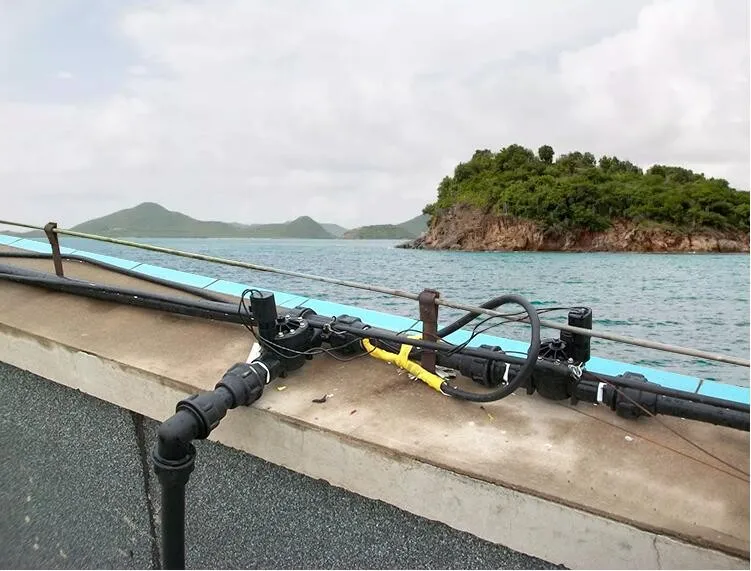

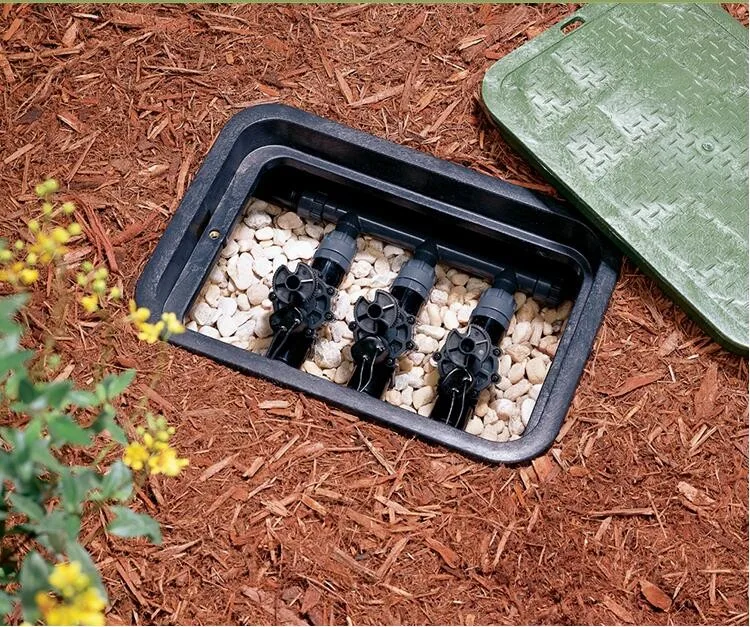

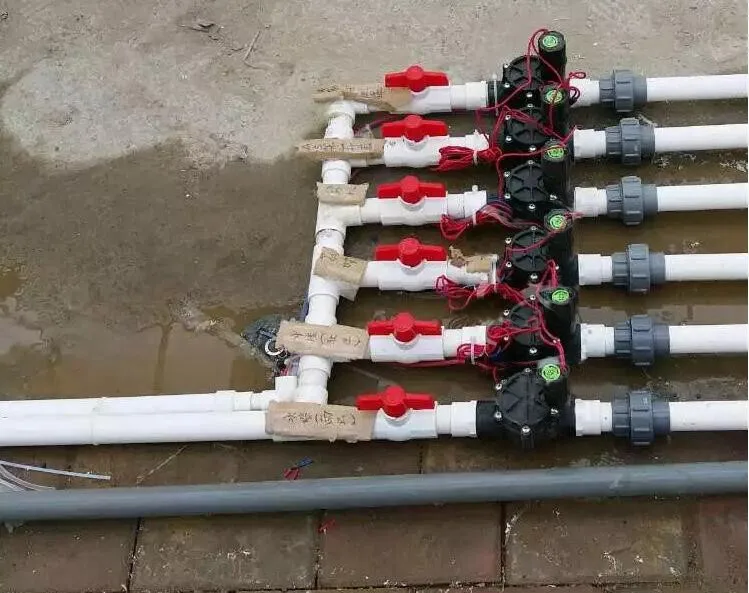

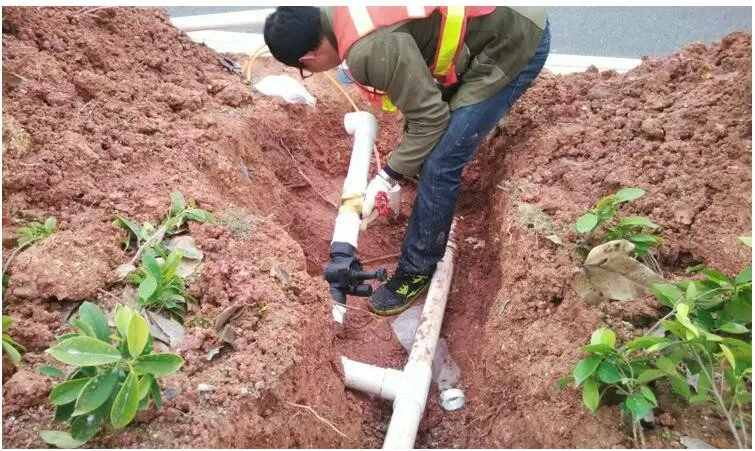

Application

Certifications

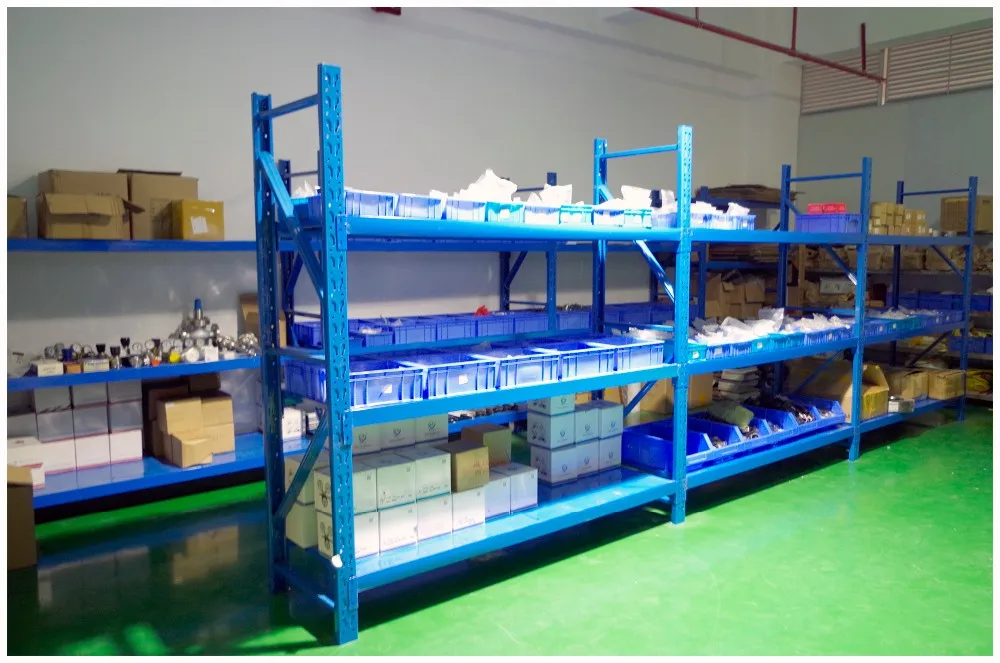

About us
